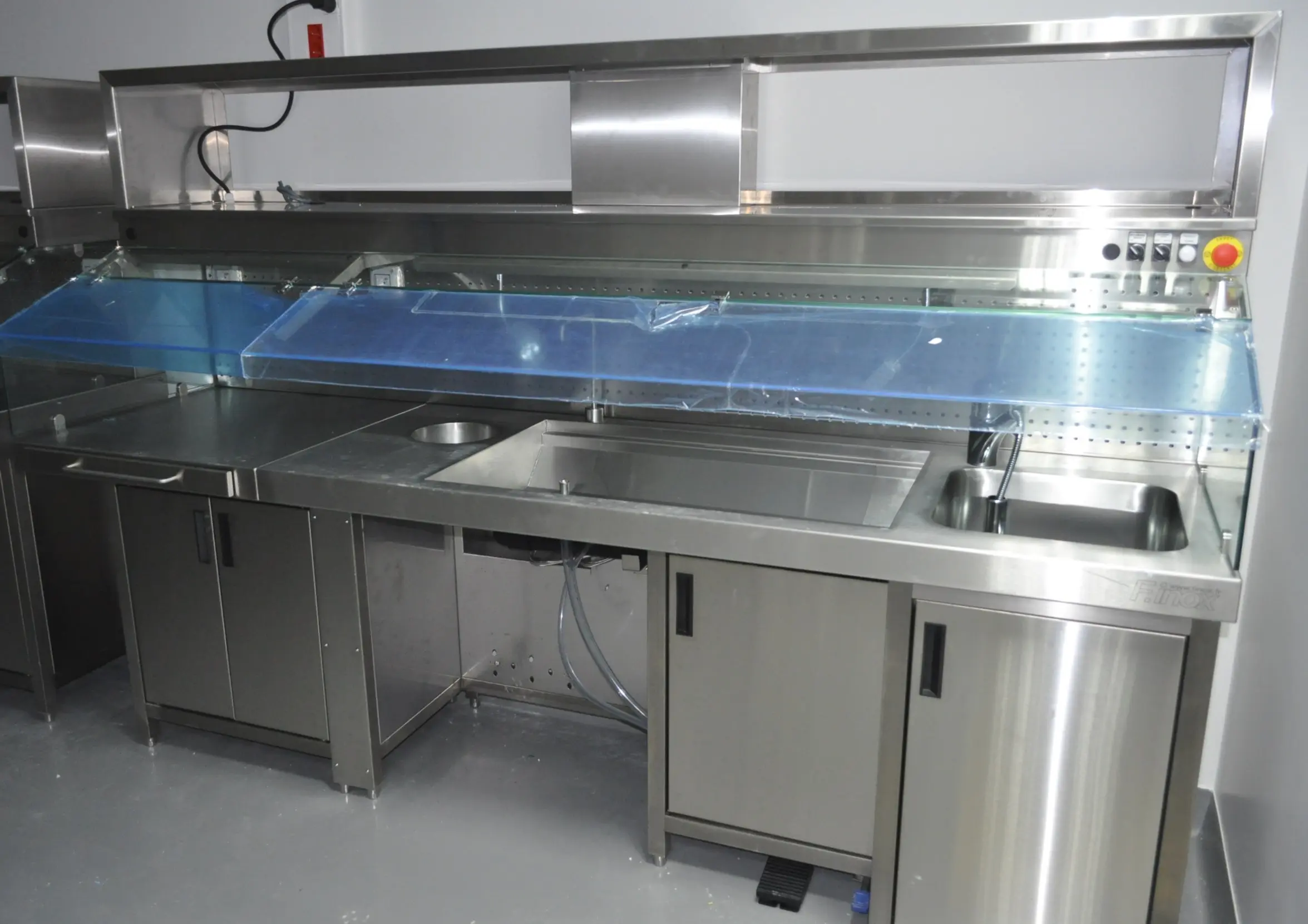

Macroscopy table in several widths

REF.: 4810

Worktop: in stainless steel 316 L – thickness 15/10 and fixed height of 90cm, frame and cladding of the table 304 L, a worktop of length 90 and width 50cm, with removable dissection trays with holes (air velocity of 0.4 m/s), Table is equipped with a ventilated lower cabinet to ensure clean air and safe work,

Lower part: Ventilated cabinet along the entire length of the table, storage space with access to sliding doors, ergonomic return to allow work in a sitting/standing position except at the sink (if option chosen). Access to the technical part (adjustment of registers, plumbing, etc…) with 4 adjustable feet, external siphon, lateral extraction spigot.

Upper part: Frontal suction plenum over the entire length of the table and a height of 400 mm, standard lighting double fluo 2 x 36 W in hermetic cage, folding containment in 8mm SECURIT glass and PMMA (mobile part) with two opening positions. This cover allows to channel in an optimal way the flow of the dangerous vapors and protects the operator from any projections.

Dimensions : 1500 x 750 x 1400mm + return 30mm (width x length x height) – Weight 150 kg approximately.

Options: 180cm wide model (Ref. 4820) and 200cm wide model (Ref. 4830)
Other options : – Stainless steel sink 40 x 34cm,
– Fixer recovery system (formalin) with level detector (Cf. photo 1),
– Air extractor ref. 502120/C
Fixer recovery system with level detector and audible alarm (see photo 2),
– Screen to be placed at the sink level,
– IP55 electrical outlets,
– All stainless steel shelf,
– Wastebasket on the worktop with cover (see photo 3),
– Operation of integration of the sink with optional fixator in the ventilated plan minimum width PV800mm,
– Stainless steel storage compartment in the upper part, bridge fixed on the structure,
– Cart for macroscopy table.

Worktop: in stainless steel 316 L – thickness 15/10 and fixed height of 90cm, frame and cladding of the table 304 L, a worktop of length 90 and width 50cm, with removable dissection trays with holes (air velocity of 0.4 m/s), Table is equipped with a ventilated lower cabinet to ensure clean air and safe work,
Lower part: Ventilated cabinet along the entire length of the table, storage space with access to sliding doors, ergonomic return to allow work in a sitting/standing position except at the sink (if option chosen). Access to the technical part (adjustment of registers, plumbing, etc…) with 4 adjustable feet, external siphon, lateral extraction spigot.
Upper part: Frontal suction plenum over the entire length of the table and a height of 400 mm, standard lighting double fluo 2 x 36 W in hermetic cage, folding containment in 8mm SECURIT glass and PMMA (mobile part) with two opening positions. This cover allows to channel in an optimal way the flow of the dangerous vapors and protects the operator from any projections.
Dimensions : 1500 x 750 x 1400mm + return 30mm (width x length x height) – Weight 150 kg approximately
Options: 180cm wide model (Ref. 4820) and 200cm wide model (Ref. 4830)
Other options : – Stainless steel sink 40 x 34cm,
– Fixer recovery system (formalin) with level detector (Cf. photo 1),
– Air extractor ref. 502120/C
Fixer recovery system with level detector and audible alarm (see photo 2),
– Screen to be placed at the sink level,
– IP55 electrical outlets,
– All stainless steel shelf,
– Wastebasket on the worktop with cover (see photo 3),
– Operation of integration of the sink with optional fixator in the ventilated plan minimum width PV800mm,
– Stainless steel storage compartment in the upper part, bridge fixed on the structure,
– Cart for macroscopy table.

Packing: By unit with individual box.
